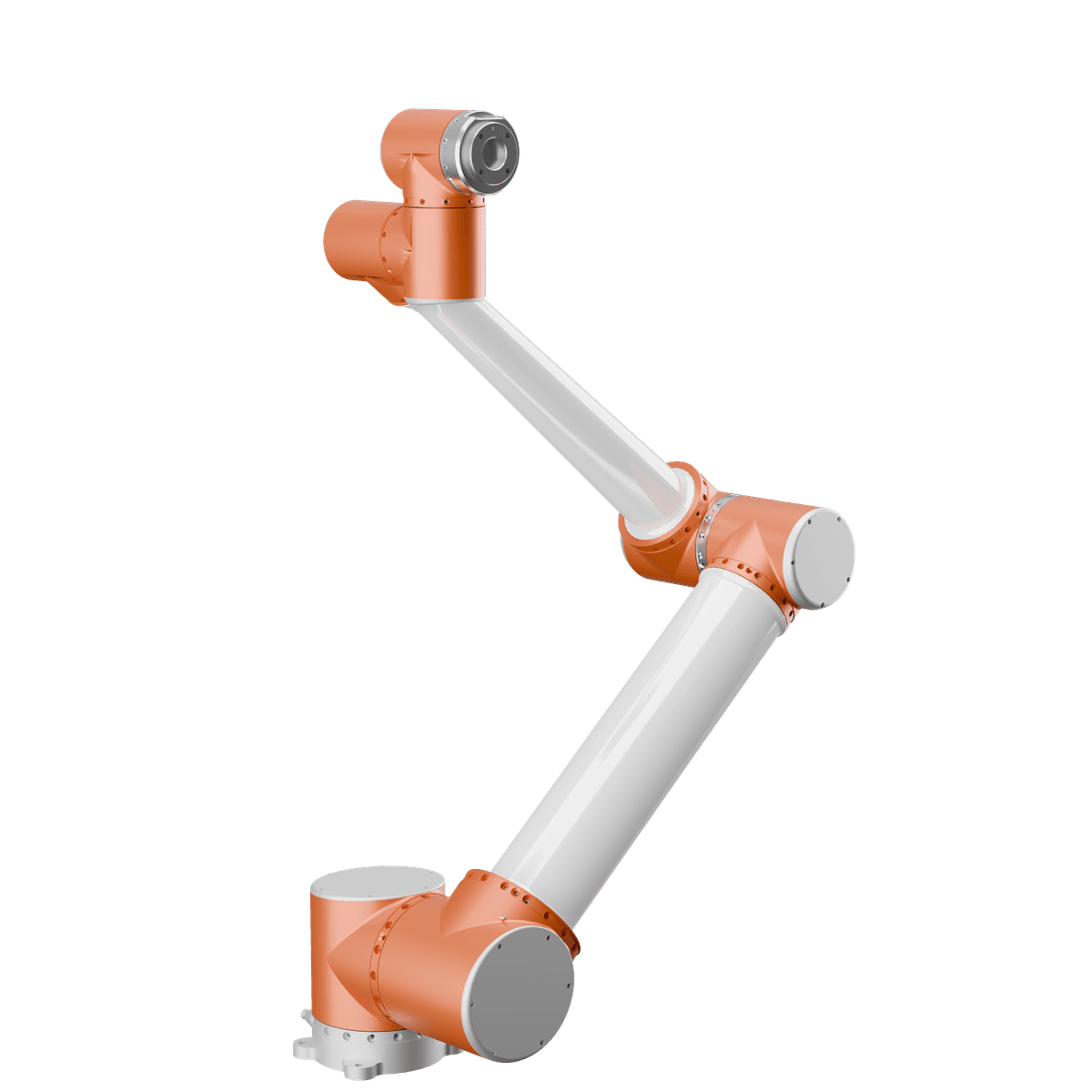

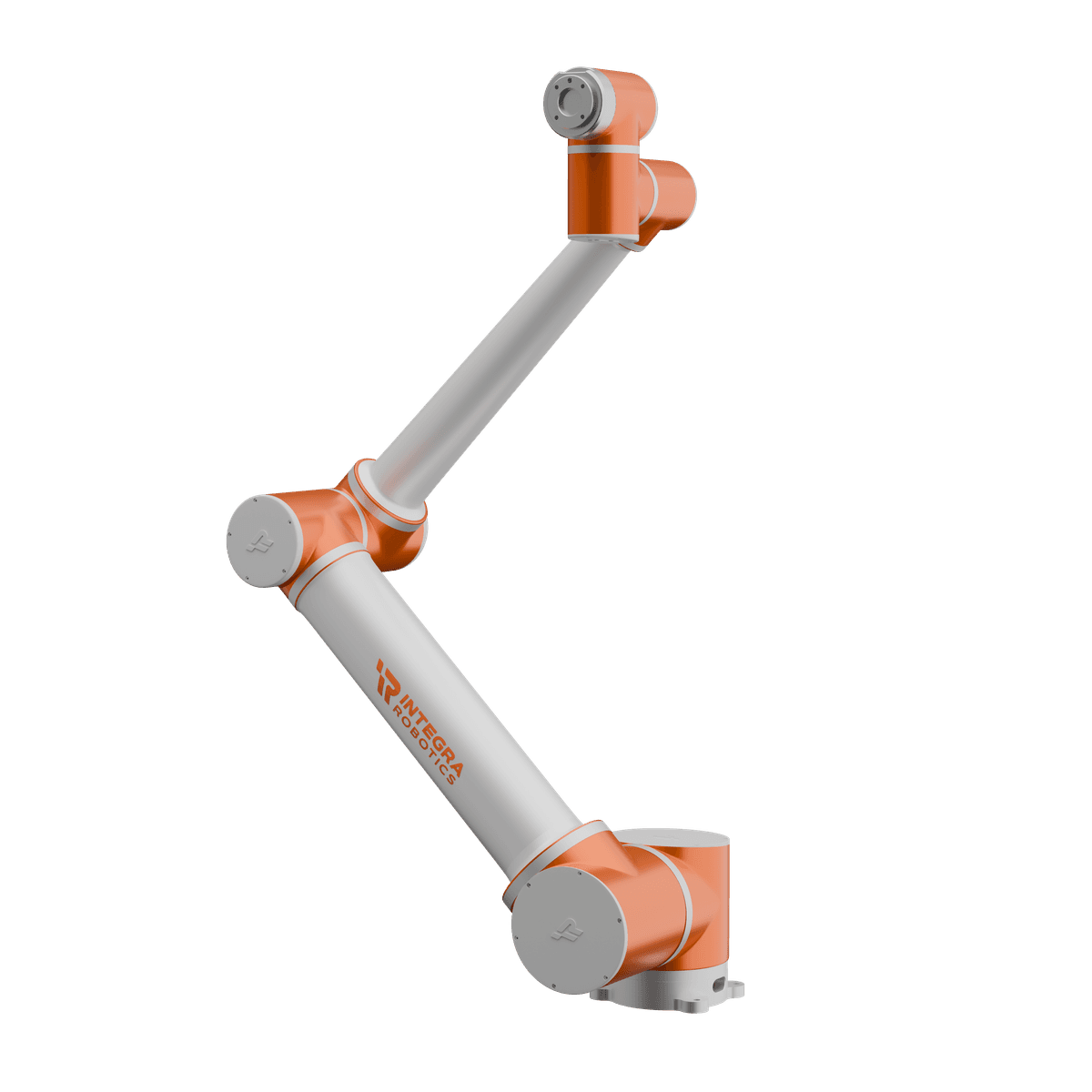

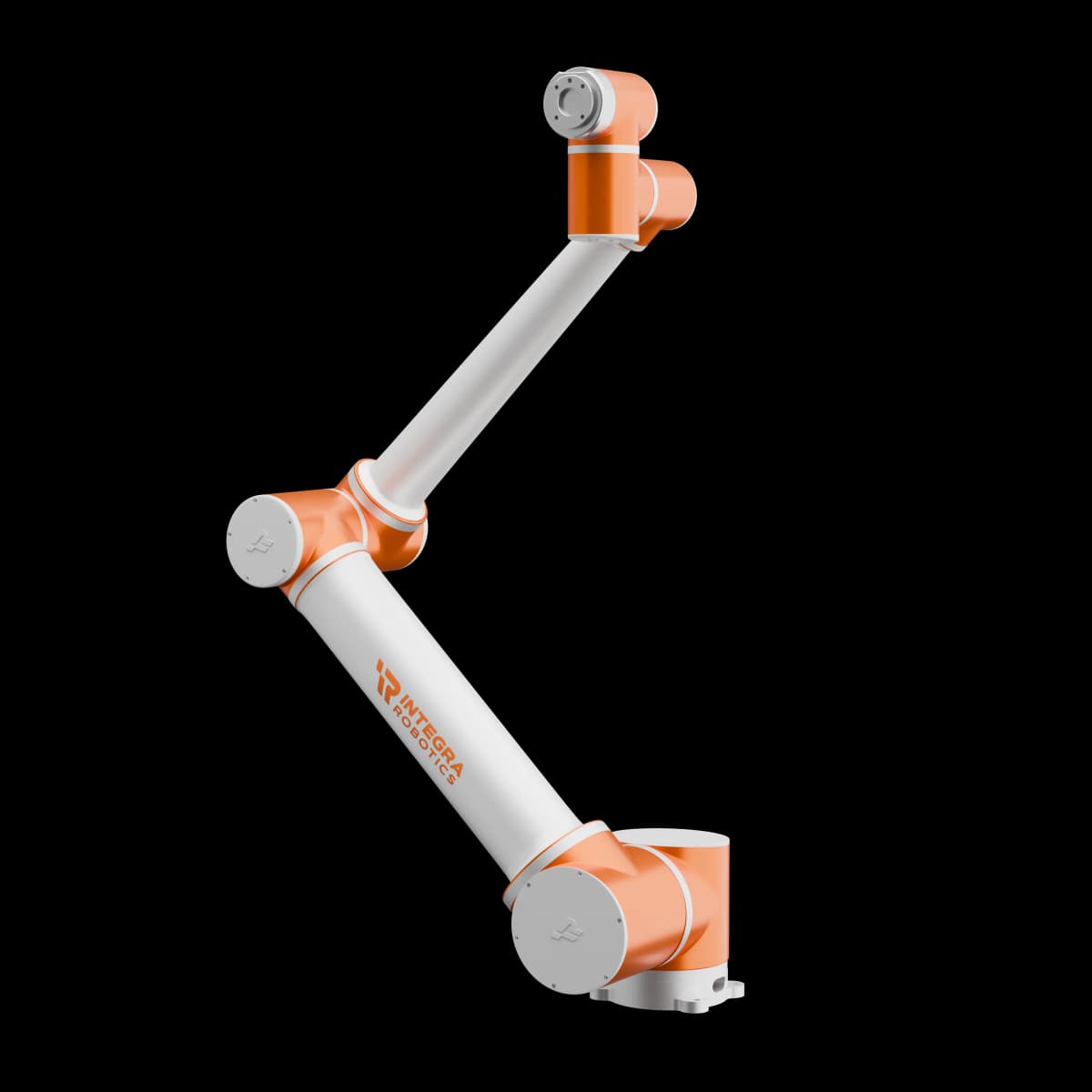

P10-R1200 Collaborative Robot

For precision tasks and demanding industrial environments.

The P10-R1200 is the ideal solution for assembly, material handling, machine tending, dispensing, inspection, and lab automation. With a 10 kg payload and 1200 mm reach, it is ready for heavier handling and expanded work envelopes in bench-top cells, workstations, and collaborative tasks alongside operators.

background patternrobot
Payload capacity icon

10 kg

Payload

Robot reach range icon

1200 mm

Reach

Robot weight icon

36.5 kg

Weight

Repeatability precision icon

±0.05 mm

Repeatability

icon

6-DoF

Degrees-of-freedom

Technical Specifications

P10-R1200 Cobot
Performance Overview

Reach Model No.

P10-R1200

Degrees of Freedom

6

Payload (Kg)

10

Reach (mm)

1200

Repeatability (mm)

±0.05

Weight (Kg)

36.5

IP Classification

IP54 standard, IP66 optional upgrade

Installation Orientation

Any ceiling, floor, wall

Encoder Resolution

19Bit

Communication Bus

EtherCAT

Brake Type

Friction brakes on all joints

bg

Ready to dive deeper?

Download the official
P10-R1200 cobot datasheet.
