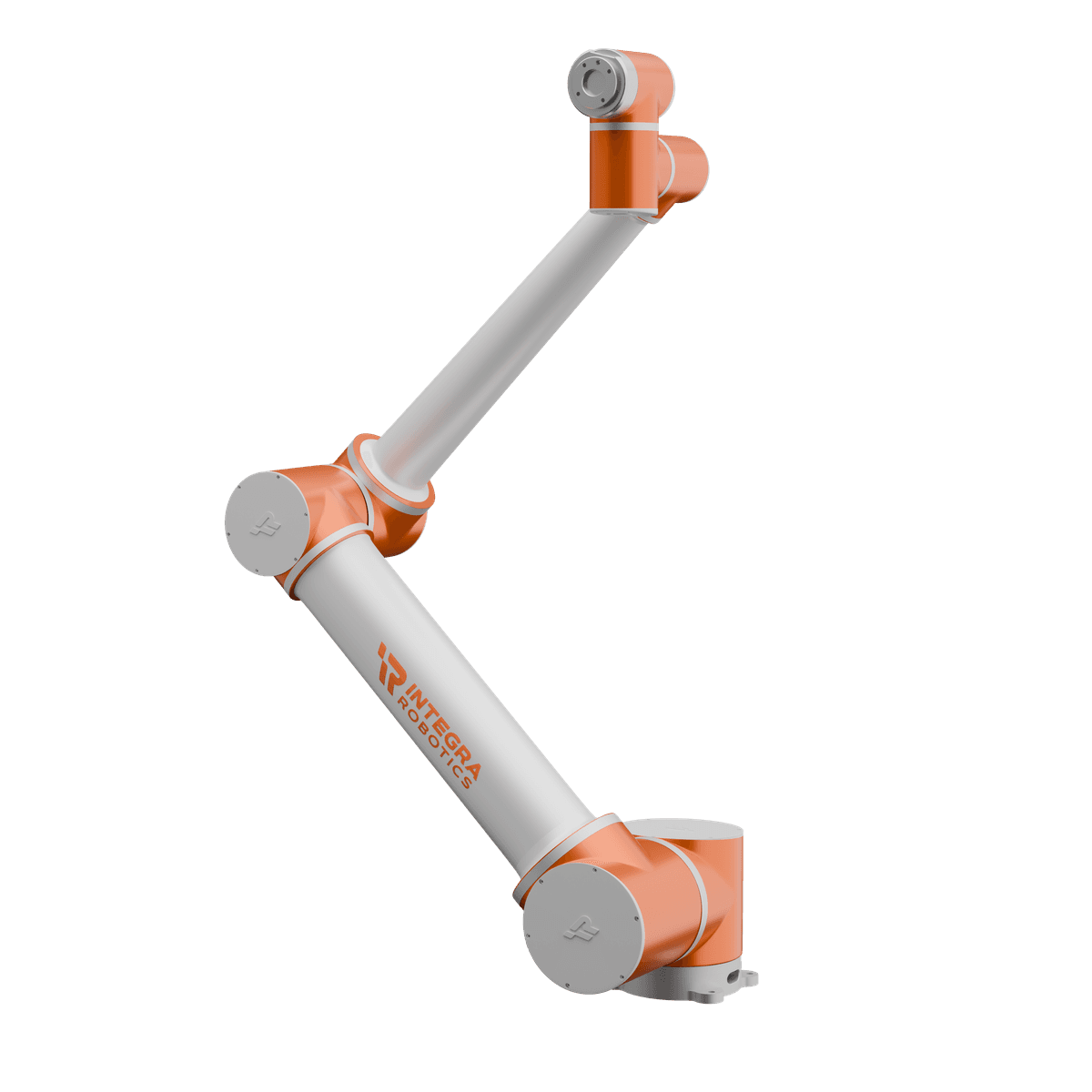

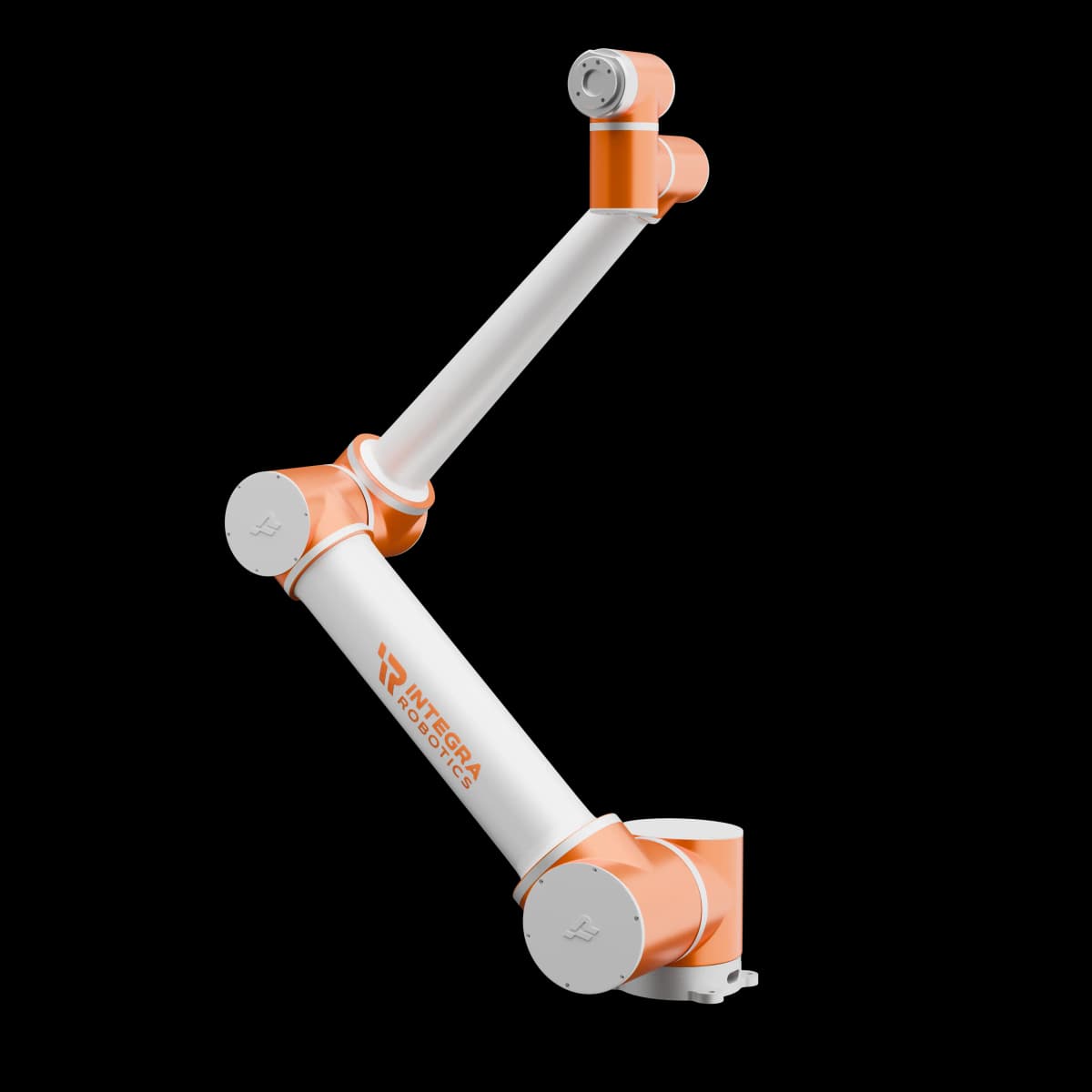

P20-R1550 Collaborative Robot

For precision tasks and demanding industrial environments.

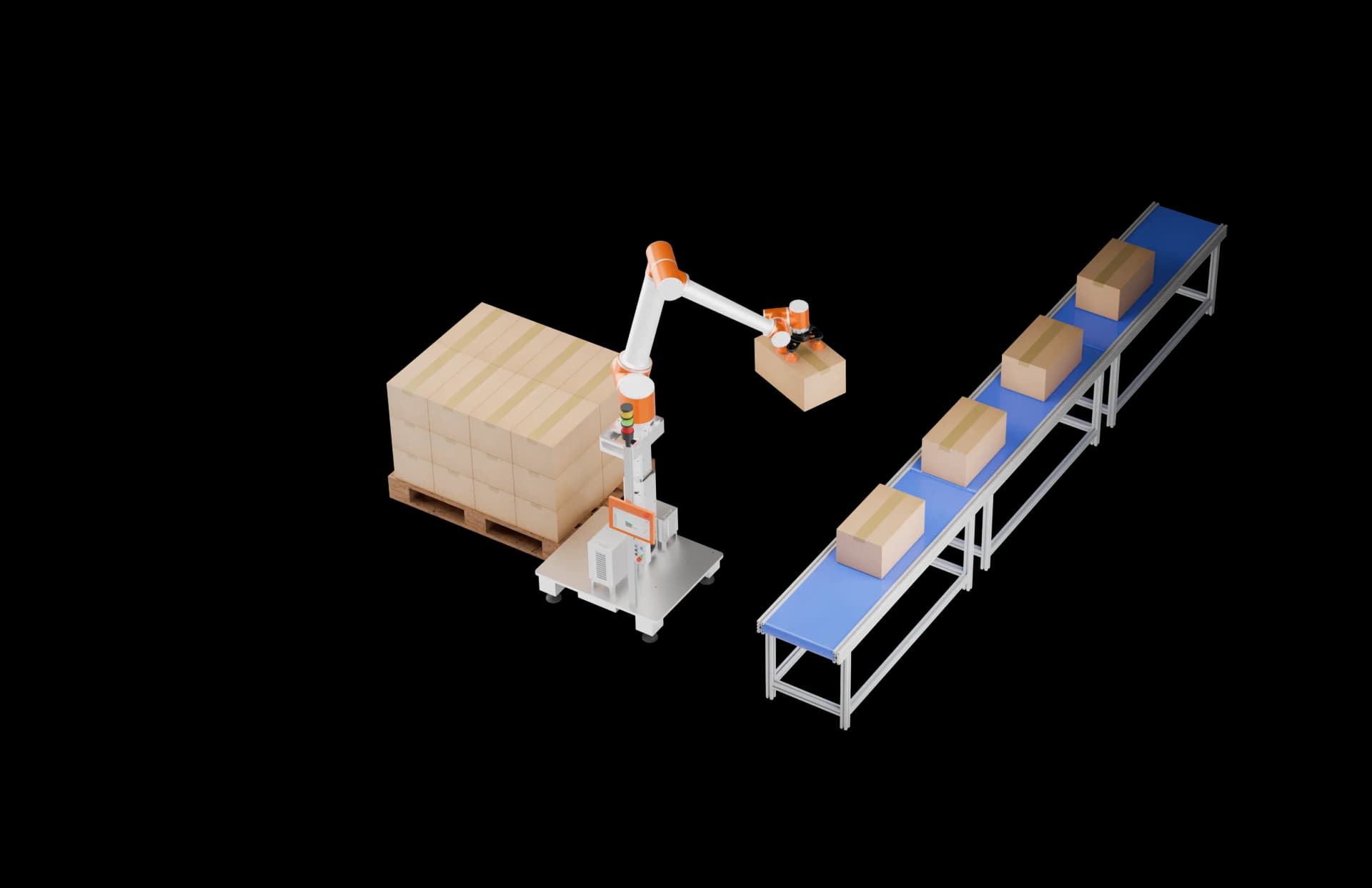

The P20-R1550 is the ideal solution for heavy material handling, machine tending, palletizing, dispensing, and industrial automation. With a 20 kg payload and 1550 mm reach, it is made for heavy picks and long-reach placement in demanding workstations and collaborative tasks alongside operators.

background patternrobot
Payload capacity icon

20 kg

Payload

Robot reach range icon

1550 mm

Reach

Robot weight icon

~58 kg

Weight

Repeatability precision icon

±0.1 mm

Repeatability

icon

6-DoF

Degrees-of-freedom

Technical Specifications

P20-R1550 Cobot
Performance Overview

Reach Model No.

P20-R1550

Degrees of Freedom

6

Payload (Kg)

20

Reach (mm)

1550

Repeatability (mm)

±0.1

Weight (Kg)

~58

IP Classification

IP54 standard, IP66 optional upgrade

Installation Orientation

Any ceiling, floor, wall

Encoder Resolution

19Bit

Communication Bus

EtherCAT

Brake Type

Friction brakes on all joints

bg

Ready to dive deeper?

Download the official
P20-R1550 cobot datasheet.
