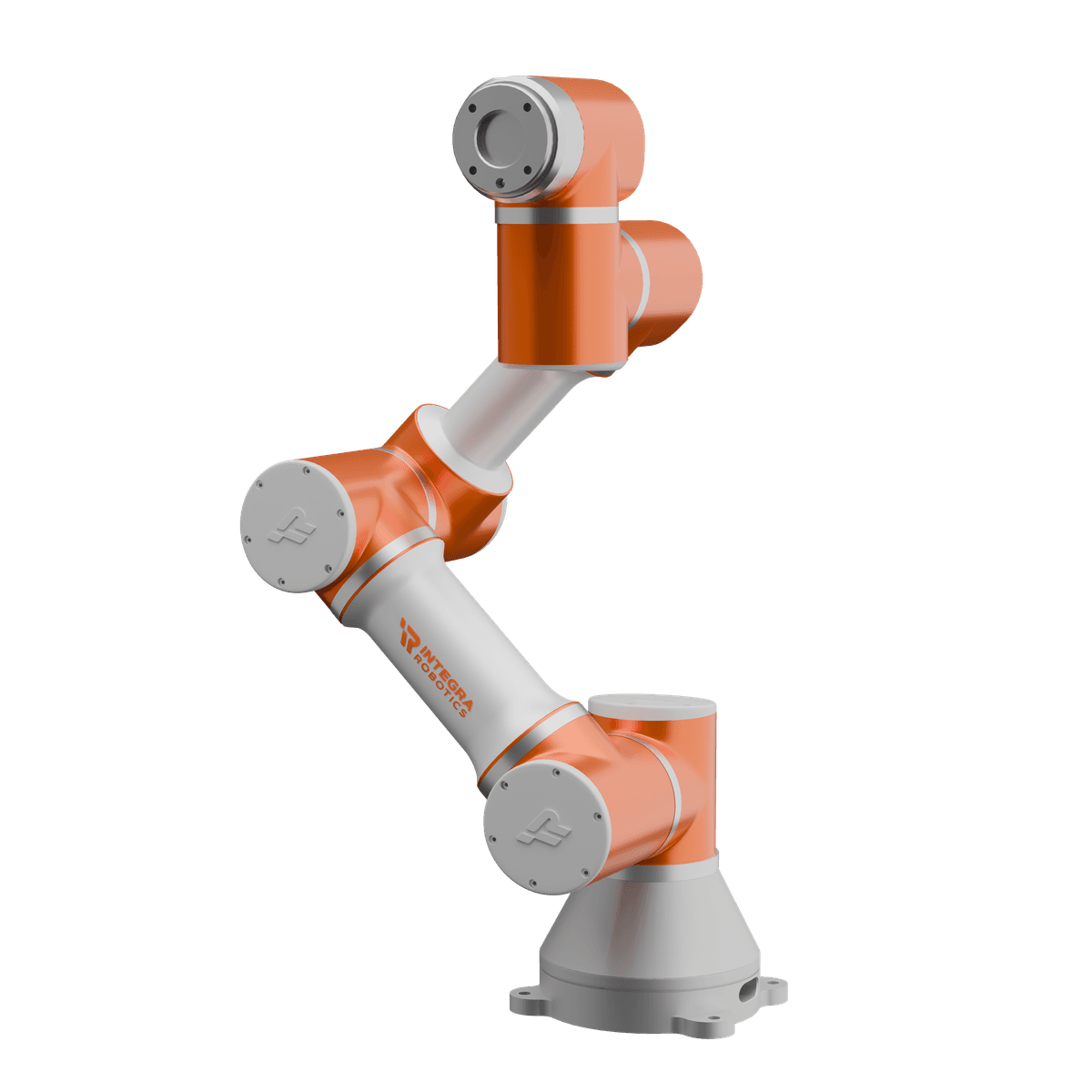

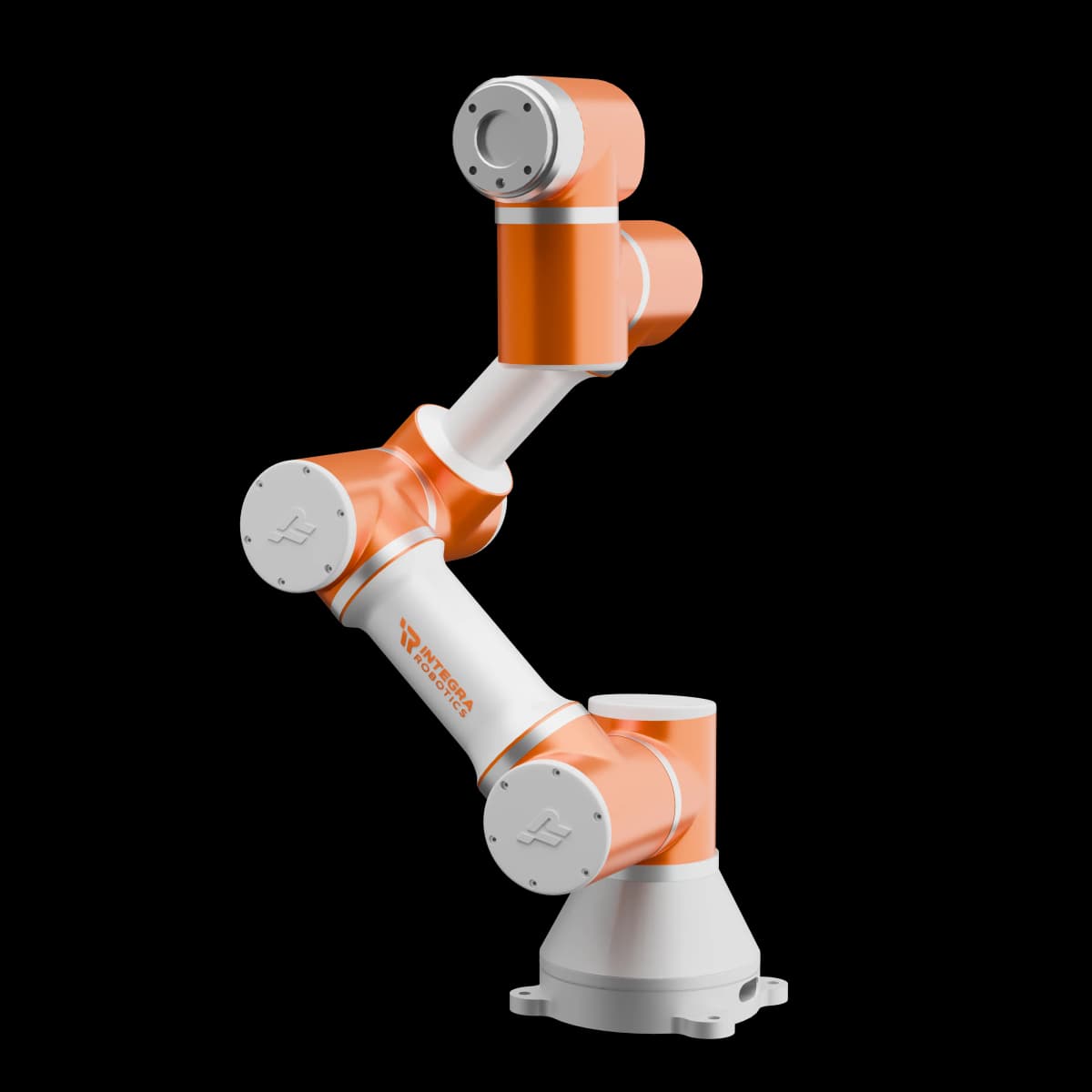

P3-R500 Collaborative Robot

For precision tasks and demanding industrial environments.

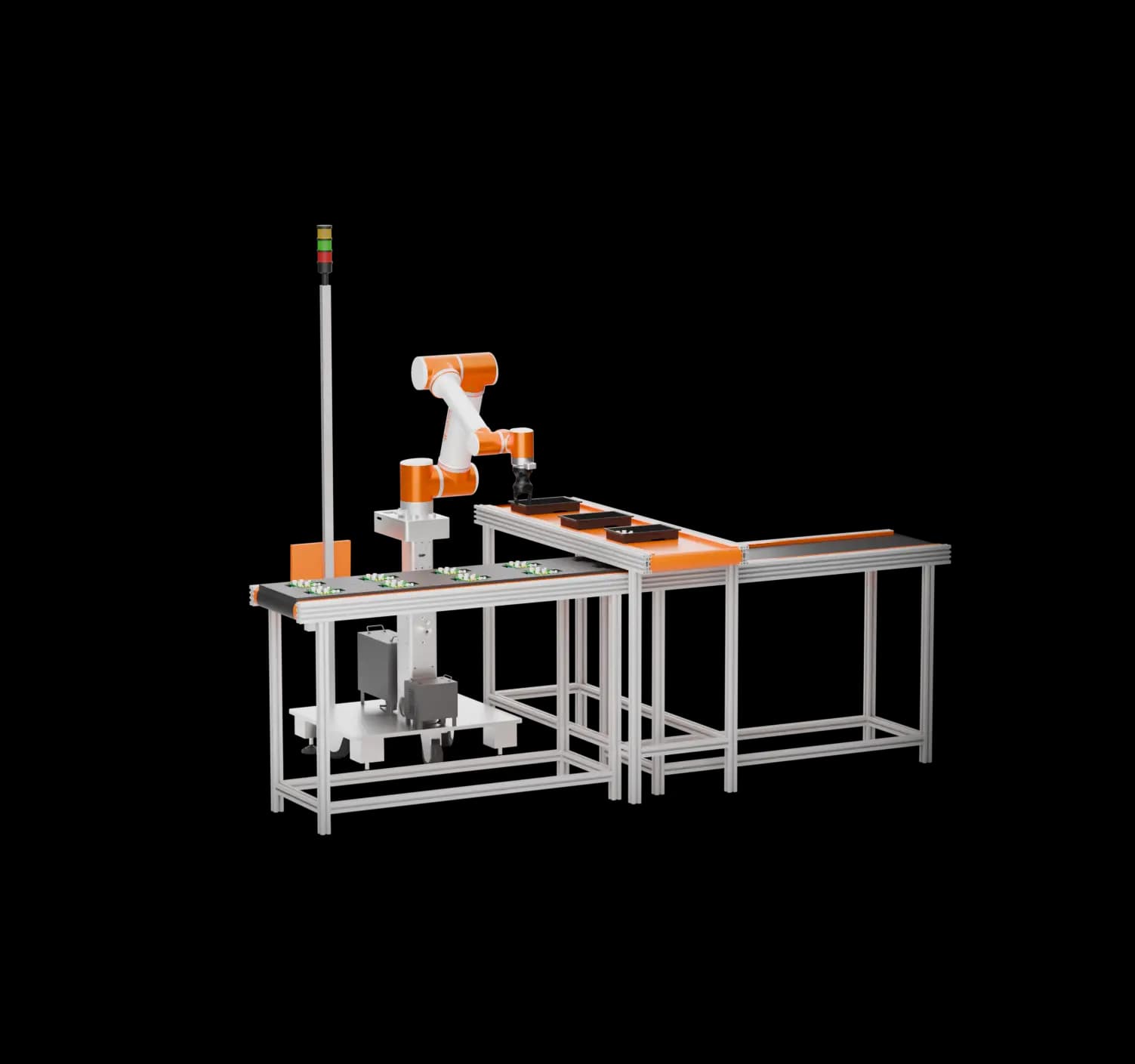

The P3-R500 is the ideal solution for small-part assembly, light material handling, machine tending, dispensing, inspection, and lab automation. With a 3 kg payload and compact 500 mm reach, it is ideal for bench-top cells, tight workstations, and collaborative tasks alongside operators.

background patternrobot
Payload capacity icon

3 kg

Payload

Robot reach range icon

500 mm

Reach

Robot weight icon

13 kg

Weight

Repeatability precision icon

±0.03 mm

Repeatability

icon

6-DoF

Degrees-of-freedom

Technical Specifications

P3-R500 Cobot
Performance Overview

Reach Model No.

P3-R500

Degrees of Freedom

6

Payload (Kg)

3

Reach (mm)

500

Repeatability (mm)

±0.03

Weight (Kg)

13

IP Classification

IP54 standard, IP66 optional upgrade

Installation Orientation

Any ceiling, floor, wall

Encoder Resolution

19Bit

Communication Bus

EtherCAT

Brake Type

Friction brakes on all joints

bg

Ready to dive deeper?

Download the official
P3-R500 cobot datasheet.
