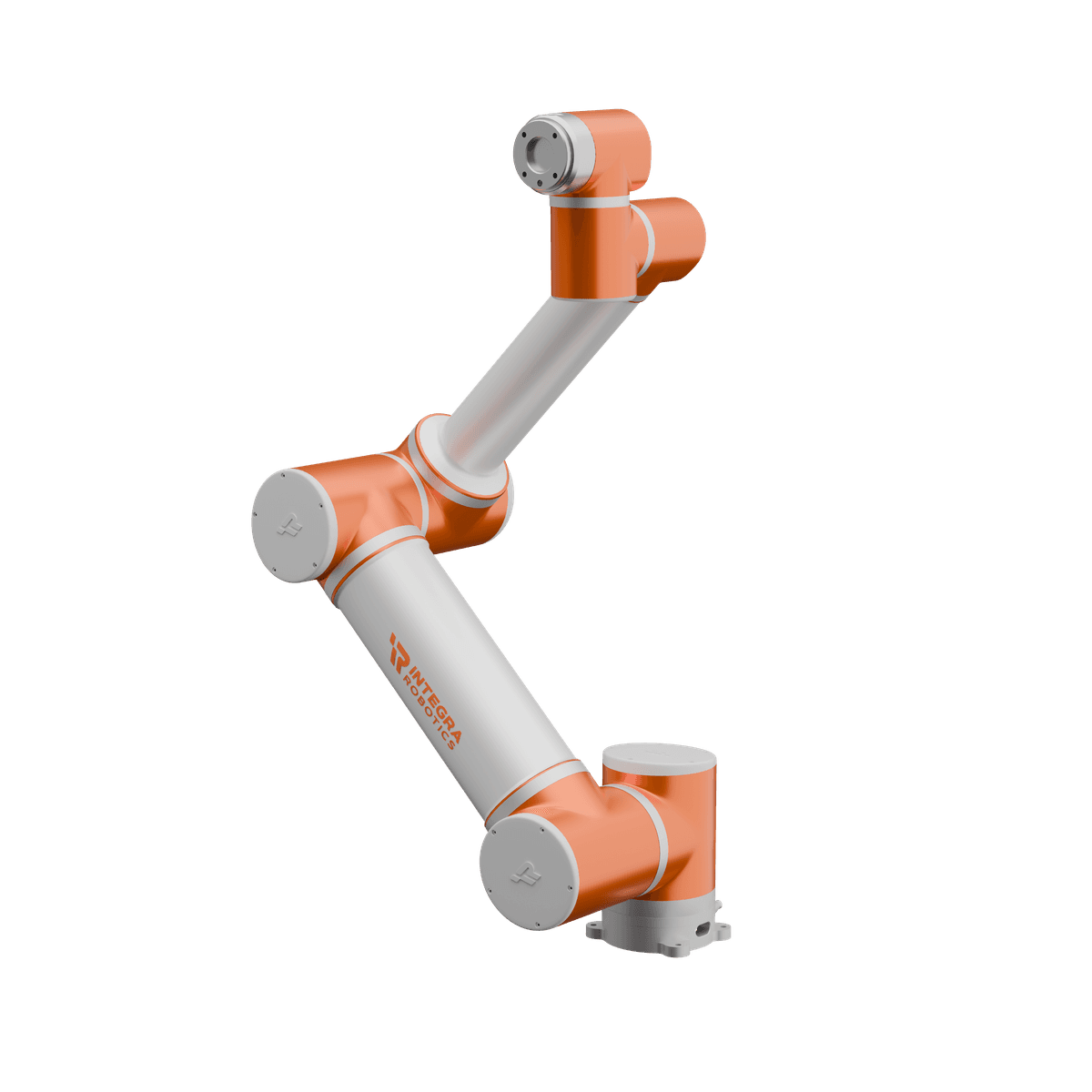

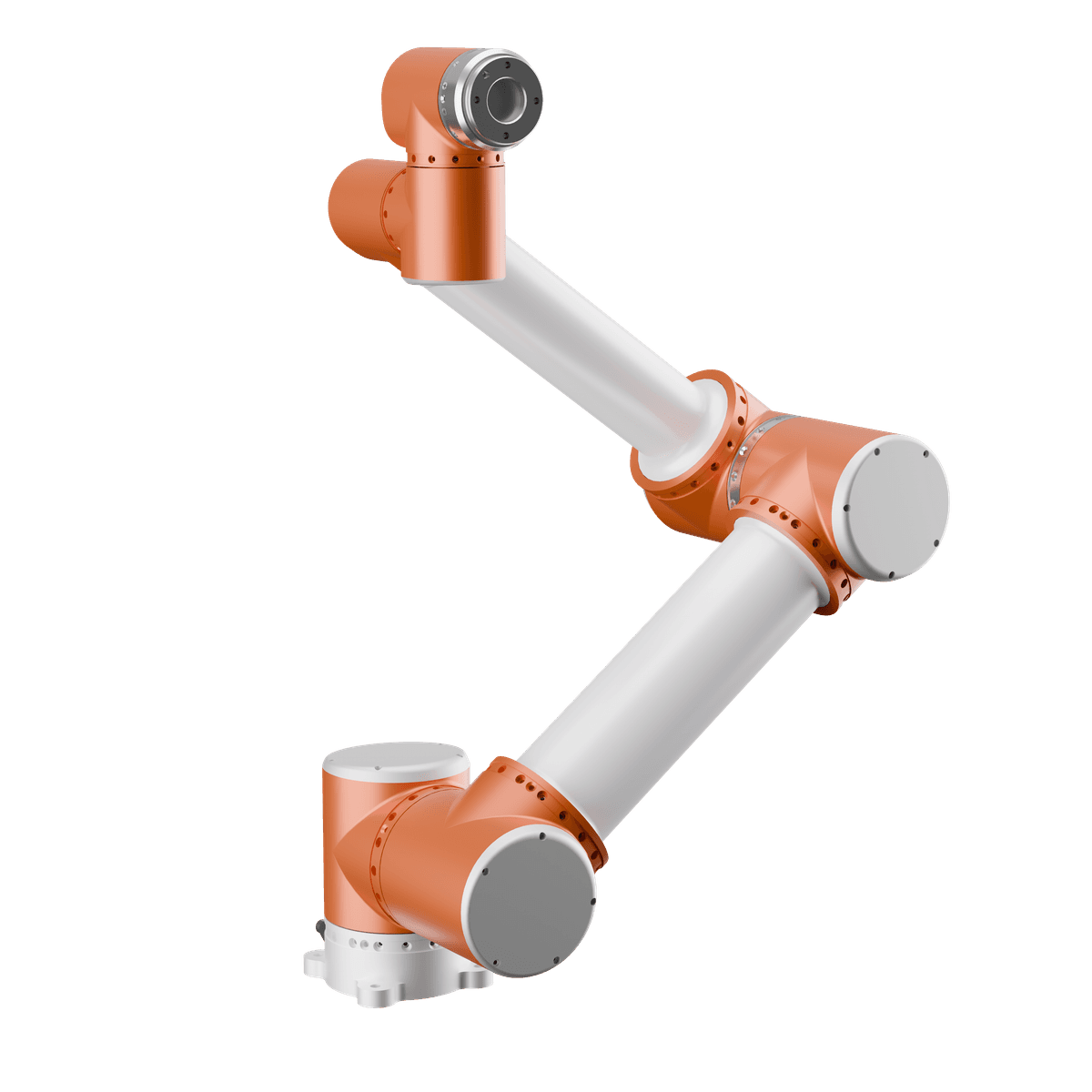

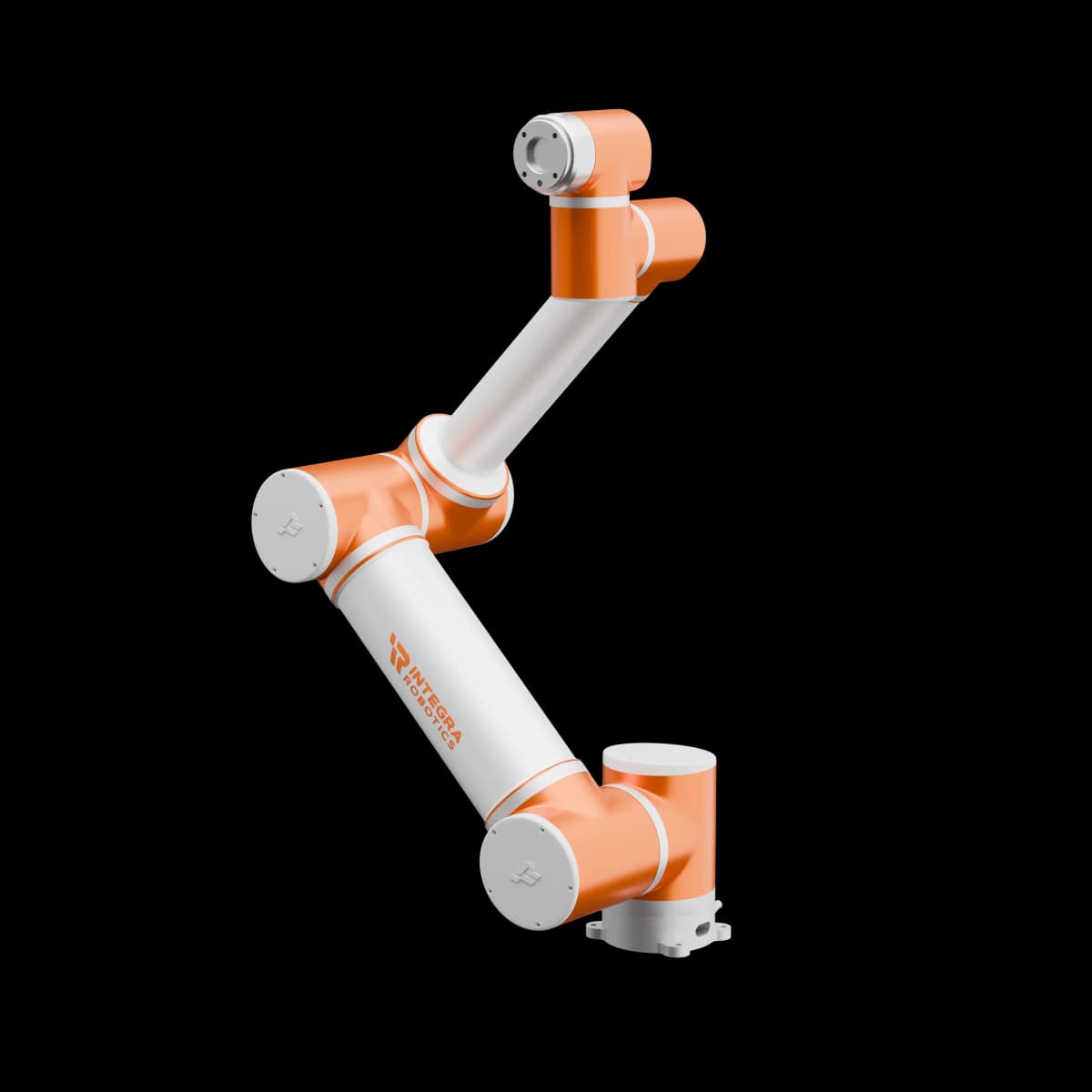

P5-R850 Collaborative Robot

For precision tasks and demanding industrial environments.

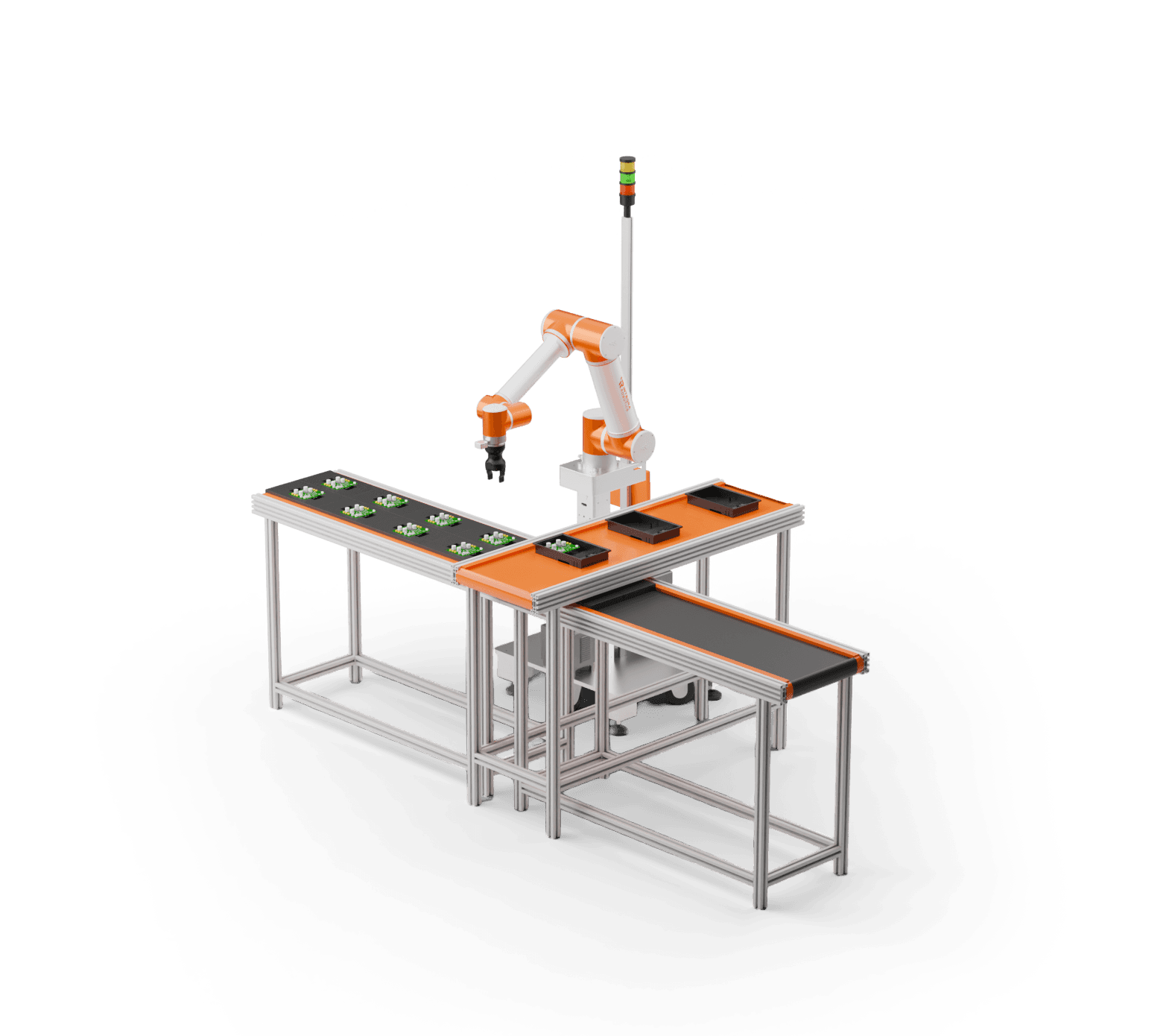

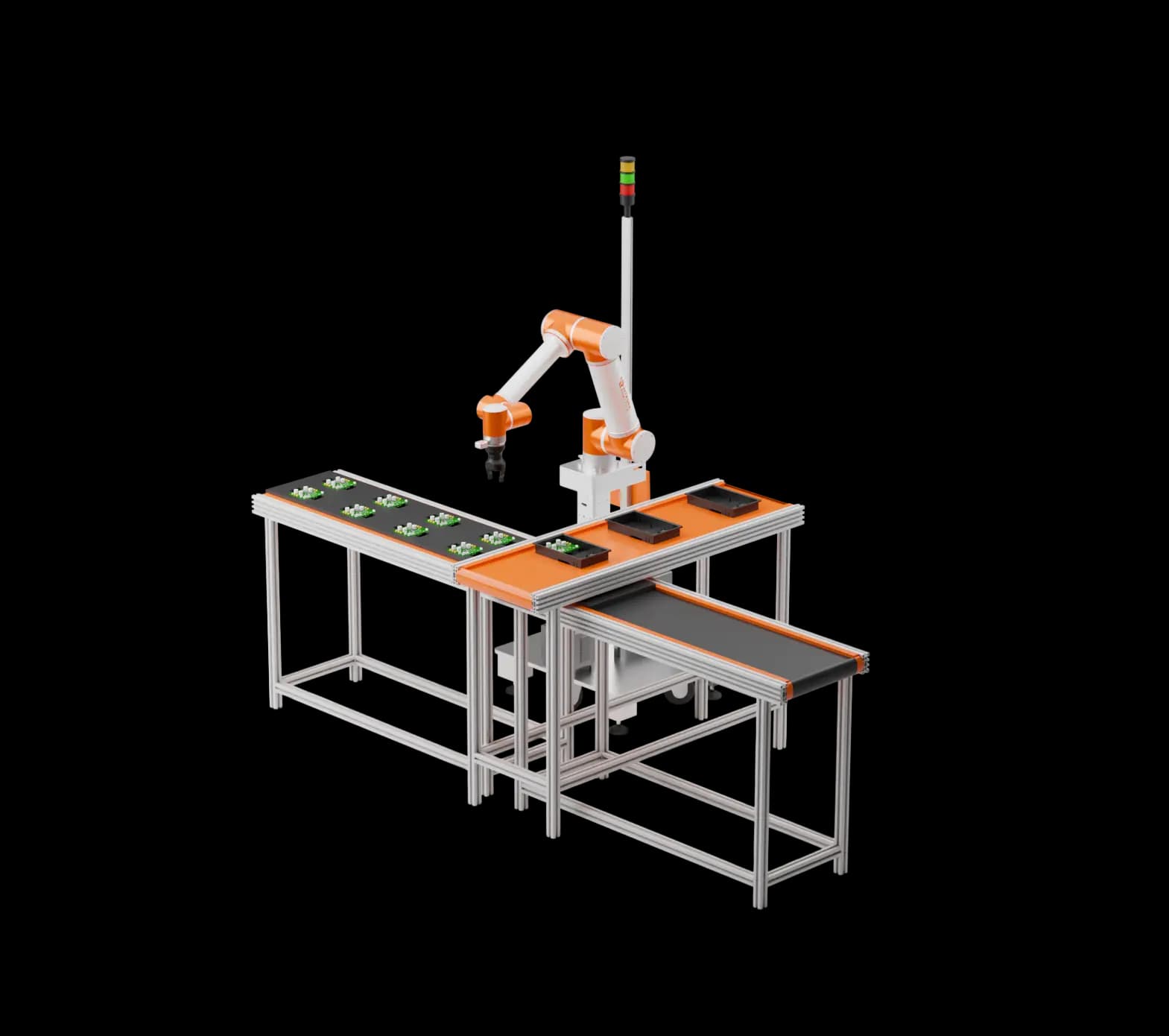

The P5-R850 is the ideal solution for small-part assembly, light material handling, machine tending, dispensing, inspection, and lab automation. With a 5 kg payload and 850 mm reach, it is optimized for larger work envelopes, high-throughput cells, and collaborative tasks alongside operators.

background patternrobot
Payload capacity icon

5 kg

Payload

Robot reach range icon

850 mm

Reach

Robot weight icon

23.5 kg

Weight

Repeatability precision icon

±0.03 mm

Repeatability

icon

6-DoF

Degrees-of-freedom

Technical Specifications

P5-R850 Cobot
Performance Overview

Reach Model No.

P5-R850

Degrees of Freedom

6

Payload (Kg)

5

Reach (mm)

850

Repeatability (mm)

±0.03

Weight (Kg)

23.5

IP Classification

IP54 standard, IP66 optional upgrade

Installation Orientation

Any ceiling, floor, wall

Encoder Resolution

19Bit

Communication Bus

EtherCAT

Brake Type

Friction brakes on all joints

bg

Ready to dive deeper?

Download the official
P5-R850 cobot datasheet.
